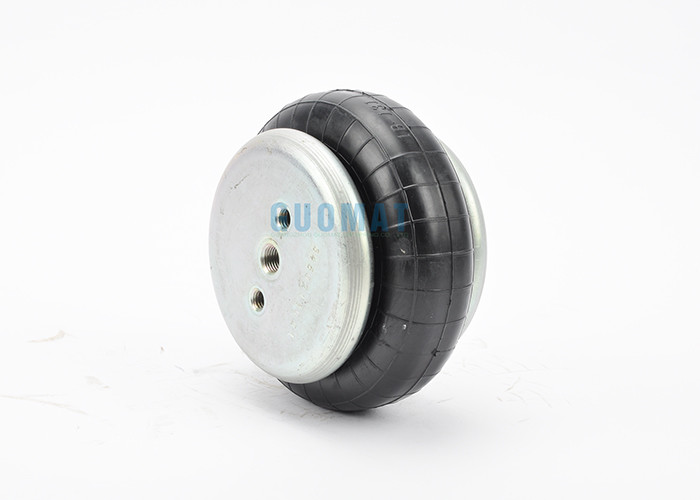

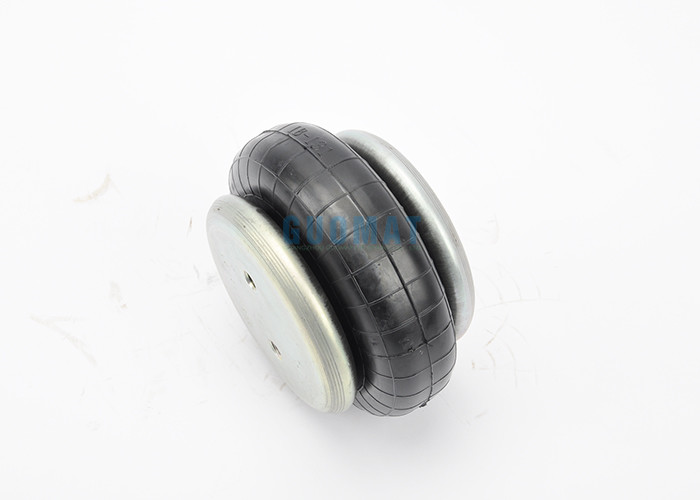

W01-358-7731 Single Convoluted Air Spring for Air spring vibration testing machine

Name: W013587731 Single Convoluted Air Spring for Air spring vibration testing machine
Brand: GUOMAT
Price: 1 USD

China W01-358-7731 Single Convoluted Air Spring for Air spring vibration testing machine wholesale

Brand Name : GUOMAT

Model Number : W01-358-7731

Certification : ISO/TS16949:2009

Place of Origin : Guangdong,China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Rubber Steel

Firestone : W01-358-7731

Warranty : 1 Year

Weight : 1.5 kg

Other name : Convoluted Air Spring

Pressure Ability : 2-8 M Pa

Contact Now

W01-358-7731 Single Convoluted Air Spring for Air spring vibration testing machine

OEM Original Equipment Manufacturer:

GUOMAT NO.:1B7070

Firestone : W01-358-7731

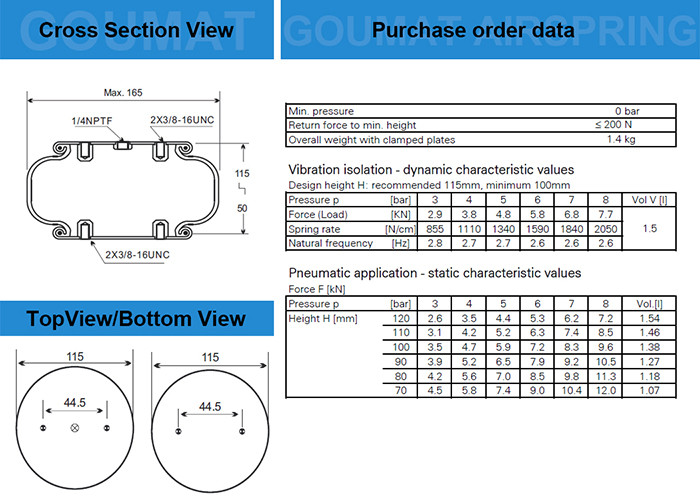

W01-358-7731 Technical Parameters
Top Cover Plate Diameter	160mm
Bottom Cover Plate Diameter	160mm
Screw Center Distance	89mm
Distance Gas Hole Between Nut	44.5mm
Gas Hole	1/4NPTF
Screw (Nut) Tooth	2pcsX3/8-16UNC
Rubber Bellows Diameter	Natural Φ220mm
The Height	Natural 110mm

GUOMAT NO.:1B7070 this item can fit for the below Equipment:

Construction Equipment:Commercial dirt moving scraper, compactor, and wagon.

Agricultural Scrapers:Land Levelers, Laser-Scrapers, and Dirt Movers for the farm.

Subsoiler :Agricultural tillage tool.

The usal kinds of Single Convolution Air Actuator

Single Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO.	Contitech NO.	Min. Design height	Installation Space Required	Max. Stroke
1B4060	FS 40-6	50	160	60
1B5050	FS 50-5	51	165	44
1B7070	FS 70-7	51	180	64
1B10010	FS 100-10	51	225	94
1B1209	FS 120-9	50	230	85
1B1210	FS 120-10	51	245	99
1B12012	FS 120-12	51	250	119
1B20010	FS 200-10	51	265	89
1B33011	FS 330-11	51	340	99

W01-358-7731 Single Convoluted Air Spring for Air spring vibration testing machine

Effective noise reduction
The air suspension isolator reduces the noise transmitted by the structure.
The air isolator itself is also very quiet, because
There is no spring vibration found in traditional coil springs.
Compact installation height
Air suspension isolators can carry loads and provide isolation
The installation height described above is as low as 2.5 inches. Coil
A spring that provides equal isolation requires a free height of
5 to 25 inches.
Precise height control
Air suspension isolator can provide precise height control through adjuster
Changes in internal air pressure. This function eliminates
Found fatigue and permanent deformation when using other types of tires
Wide range of vibration isolators
The air suspension isolator can isolate 100 loads
1 pound to over 10 million pounds per installation point
Expansion equipment
GUOMAT isolators extend the life of equipment through their excellent performance
