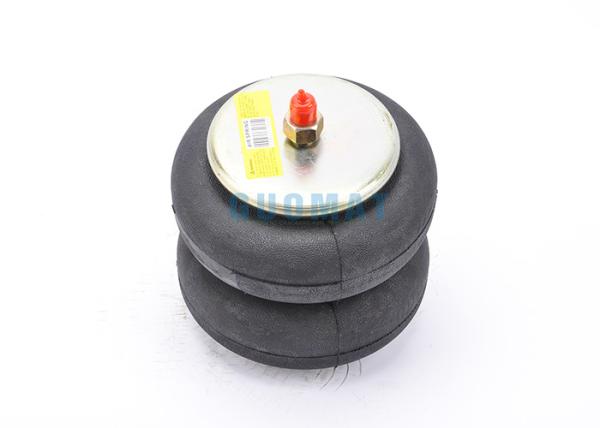

Firestone Air Spring Bag W01-358-6927 Actuators For Flask Lifts On Foundry Shake-Outs
GUOMAT 2B200-25 453 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX 3/4-16UNF
Top Cover Plate Screw (Nut) is Combined with the (Gas Hole / Air inlet / Air Fitting) which is In The Middle Of The Top Cover Plate
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 160 mm / 6.31 inches
Bottom Cover Plate Diameter: 160 mm / 6.31 inches
❹Rubber Bellows
Rubber Bellows MAX Diameter: 262 mm
Rubber Bellows Natural Diameter :225 mm / 8.88 inches
The Working Stroke : MAX 325mm to MIN 81 mm
Maximum Height : 325 mm
Minimum Height :81 mm / 3.12 inches
Stroke Height : 224 mm
❺ Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Firestone Part Number:W01-358-6927 / w013586927 / w01 358 6927
Firestone Bellows Number:20-2
ContiTech : FD20025453 / FD200-25453 FD200-25 453
ContiTech : 16133
Goodyear Part Number:2B9-218 / 2B9218 / 2B9 218
Goodyear Bellows Number:578-92-3-202 / :578923202 / :578 92 3 202
Reyco Number:12906-01
Triangle Part Number:4453
Triangle Bellows Number:6332
Leland : SC2072
SAF Holland : 57006927
Tuthill Technology : FSIP OEM: W017556927
Tuthill Technology : 1290601
W01-358-6927 Cross others OEM
| OEM References Numbers | References Numbers |
| Firestone : W01-358-6927 | Triangle : 6332/4453 |
| Contitech : FD 200-25 453 | Leland : Sc2072 |
| Contitech :: 161336 | SAF Holland : 57006927 |
| Goodyear : 2B9-218 | Tuthill Technology : 1290601 |
| Goodyear : 578923206/2 | Reyco : 12906-01 |
Common applications of GUOMAT AIR SPRING airbag
The drive axle GUOMAT AIR SPRING greatly improves the driving and handling performance of the tractor, thereby improving the comfort and safety of the driver. GUOMAT AIR SPRING reduces the maintenance of the tractor, prolongs the wear of the tires, and increases the depreciation price of the car.GUOMAT AIR SPRING hardly needs too much maintenance, and the service life of GUOMAT AIR SPRING may be more than twice that of steel springs.
The main trailer suspension GUOMAT AIR SPRING provides excellent cargo protection, is not easy to cause damage to the cargo, and at the same time reduces other maintenance problems caused by road vibration and trailer bounce when empty. The air spring can make the trailer service life longer. Because of its good shock absorption effect, it can be used to haul more kinds of goods, such as some fragile and breakable items. GUOMAT AIR SPRING reduces the expensive empty trailer mileage.

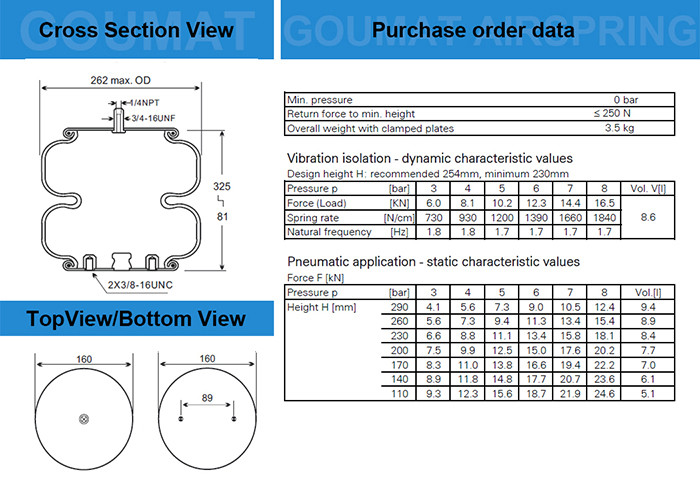

Details Technical data at the below photo
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values Force F [kN]
