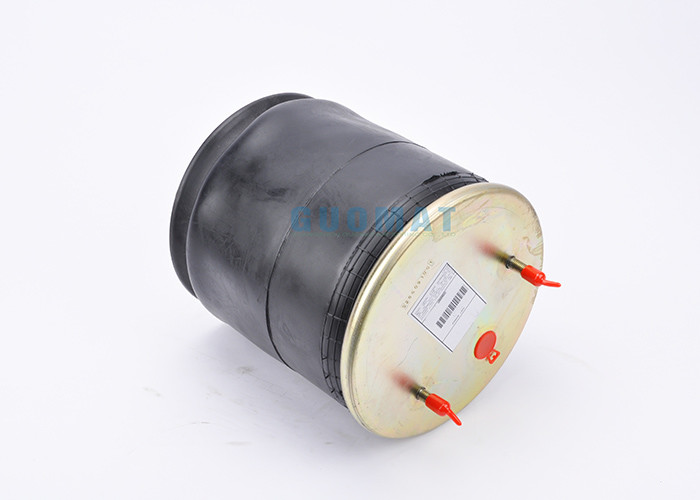

WABCO 951 811 710 0 Firestone Ride-Rite Air Helper Spring 1T17BS-6 W01 M58 6367 4022 N P03

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

WABCO 951 811 710 0 Firestone Ride-Rite Air Helper Spring 1T17BS-6 W01 M58 6367 4022 N P03

Brand Name : GUOMAT

Model Number : 4022 N P03

Certification : ISO/TS16949

Place of Origin : Guangdong , China

MOQ : 1pc

Price : $59-159/pc

Payment Terms : T/T, Western Union,paypal or others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customer's need

Material : Rubber ,Steel Piston

Firestone bellows : 1T17BS-6

Firestone : W01 M58 6367

GOODYEAR : 1R11-714

Other name : Air Shock spring

DUNLOP FR : D12B14

WABCO : 951 811 710 0

S.A.F : 3.229.0029.00

Contact Now

WABCO 951 811 710 0 Firestone Ride-Rite Air Helper Spring 1T17BS-6 W01 M58 6367 4022 N P03

GUOMAT 1T4022NP03 Technical parameters

Screw Bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75

Screw Center Distance of Top Cover Plate : 150 mm

Distance Between Stud and Central Axis : 25 mm

Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud :48 mm

Distance Between Gas Hole and Central Axis : 73 mm

Cover Plate

Top Cover Plate Diameter: Ø259 mm

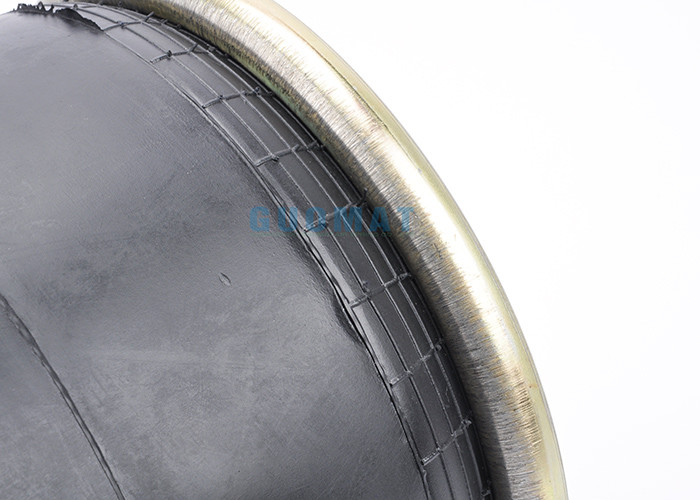

Rubber Bellows

Rubber Bellows Natural Diameter: 300 mm

Rubber Bellows MAX Height : 540 mm

Rubber Bellows MIN Height :185 mm

Working stroke : 355 mm

Bumper block / Buffer block

Bumper Block height :78 mm

Bottom Piston

Bottom Piston Diameter : Ø240 mm

Bottom Piston Height :141mm

Piston Bolt

Piston Bolt Tooth : M16 X1.75

4 pieces of Bolt

Middle faster between center Bolt : Ø200 mm

WABCO Air Helper Spring 4022 N P03

Cross References Vehicle​​s OEM References
CONTITECH 4022 N P03 S.A.F 3.229.0029.00
FIRESTONE 1T17BS-6 W01 M58 6367 S.A.F 3.229.2129.00
GOODYEAR 1R11-714 S.A.F 3.229.2229.00
PHOENIX 1DK 22 E-9**CPL S.A.F 3.229.2429.00
DUNLOP FR D12B14 WABCO 951 811 710 0
CF GOMMA 1 T 300-37 204677 WABCO 951 811 751 0
TAURUS KR 725-28**CPL WABCO 951 811 714 0
  SAF Type : 2618V

W01-M58-6367 / W01M586367 / WO1 M58 6367

4022 N P03 / 4022NP03 / 4022N P03

1R11-714 / 1R11 714 / 1R11714

W01 M58 6367 4022 N P03 cross WABCO NUMBER

WABCO 951 811 710 0 3.229.2129.00
951 811 714 0 3.229.2229.00
951 811 751 0 3.229.2429.00

WABCO 951 811 710 0 Firestone Ride-Rite Air Helper Spring 1T17BS-6 W01 M58 6367 4022 N P03

The base of W01M586367 have four screw for conneting,the four screw is On the same circumference of a circle.The base is made of plastic by GUOMAT.

WABCO 951 811 710 0 Firestone Ride-Rite Air Helper Spring 1T17BS-6 W01 M58 6367 4022 N P03WABCO 951 811 710 0 Firestone Ride-Rite Air Helper Spring 1T17BS-6 W01 M58 6367 4022 N P03
